MM11-WD0314B
- Brand: Huying Intelligen
- Product Code: MM11-WD0314B
- Reward Points: 60
- Availability: In Stock
$220.00
- Ex Tax: $220.00
Product Introduction

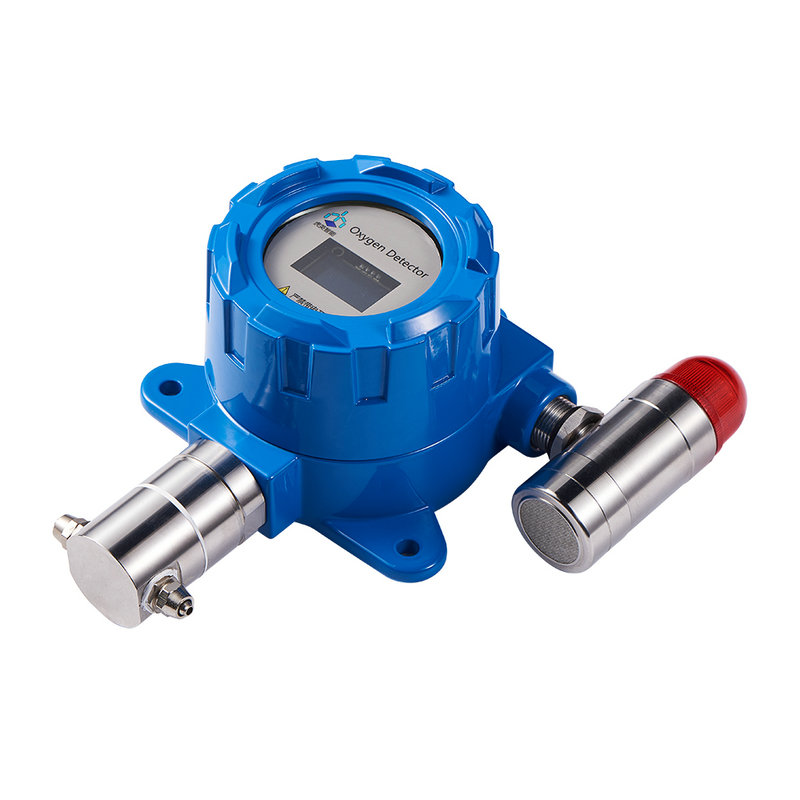

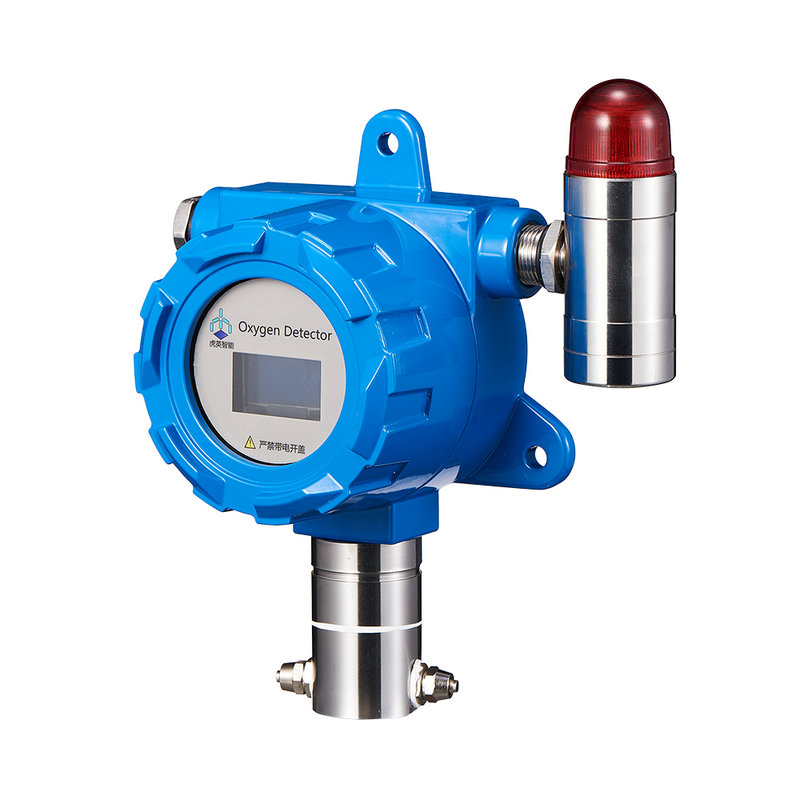

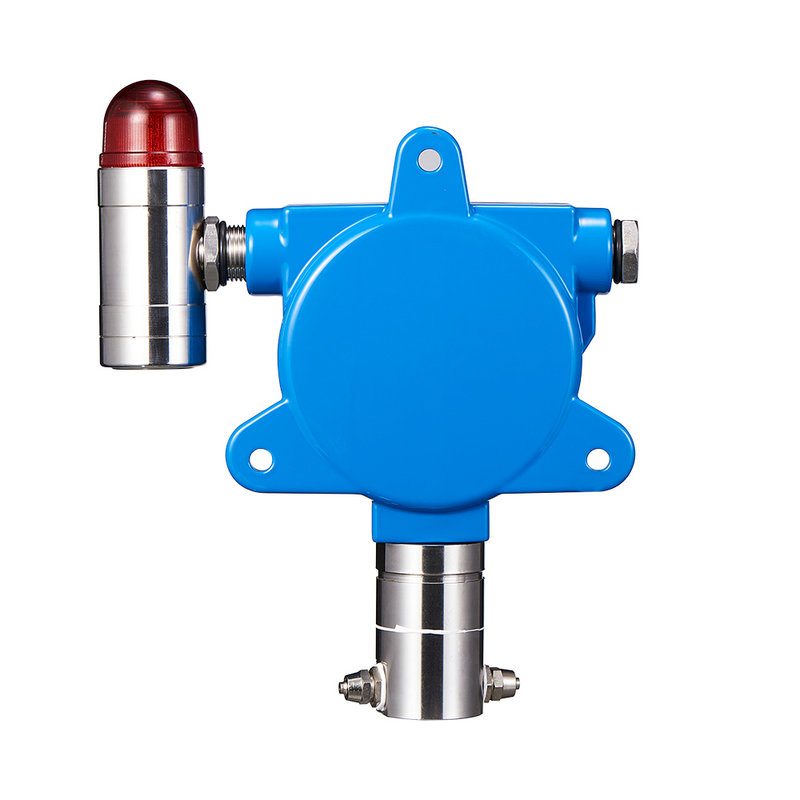

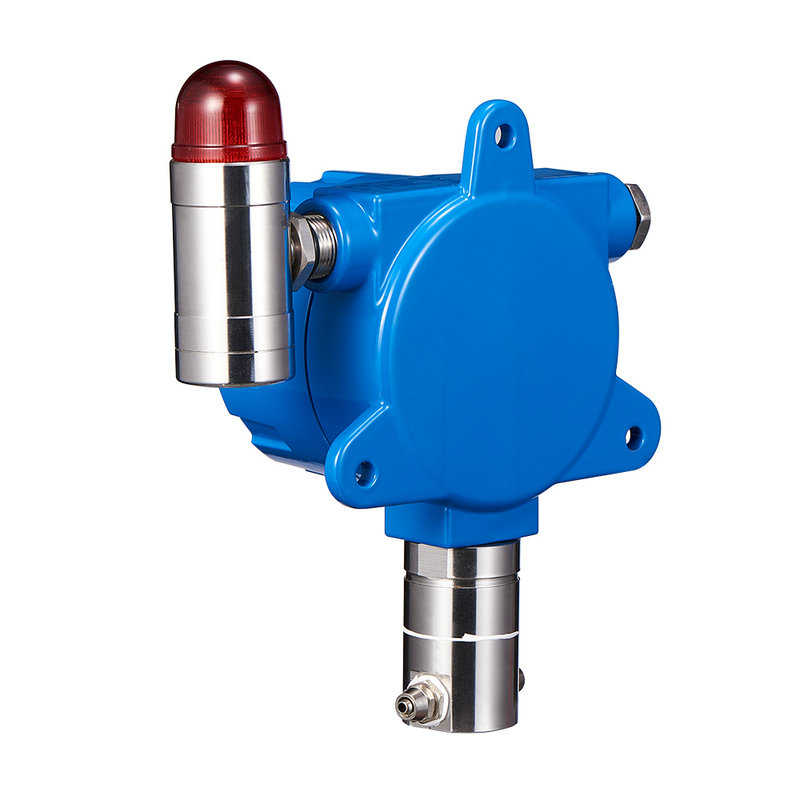

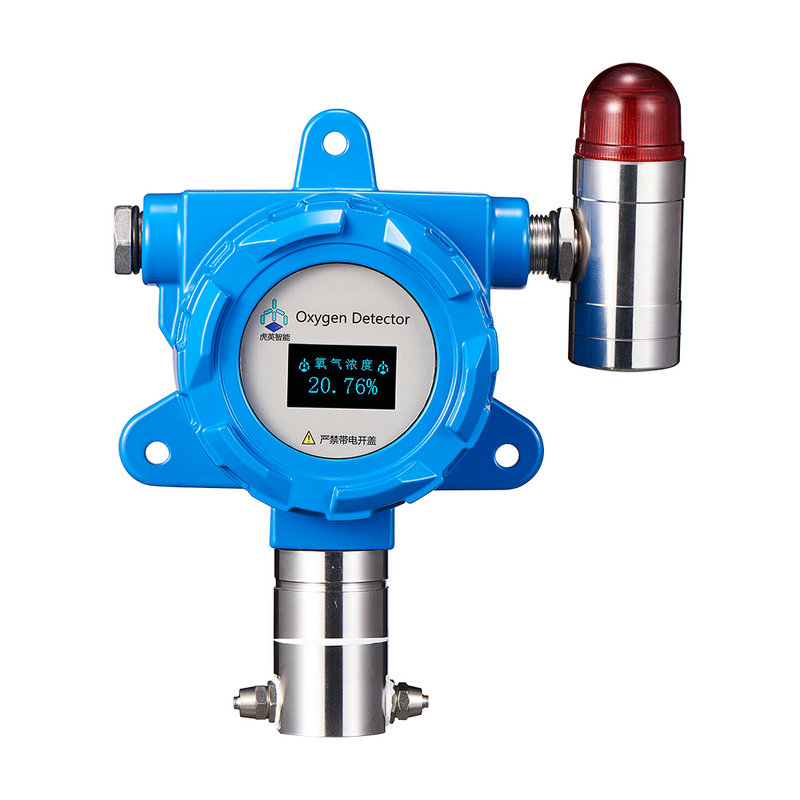

Explosion proof oxygen content detector, with simple structure, small volume, and convenient installation; Equipped with RS485 communication port, analog output 4-20mA; Original imported zirconia sensor with high measurement accuracy, fast response, and long service life;
Technical parameter
|
operational principle |
Zirconia |
|
Detection scope |
100/1000ppm/1.00/21.00％ O2 |
|
measurement accuracy |
0~1000ppm/1.00/21.00％O2≤±1% FS |
|
resolving power |
0.01％ O2 |
|
Repeatability |
±1% FS |
|
Control output |
Non isolated 4~20mA DC |
|
1 channel programmable relay alarm output |
|
|
Communication mode |
RS485,Analog output 4~20mA |
|
Working power supply |
DC24V/2A |
|
Environmental temperature and humidity |
－5℃～+50℃ ， ＜80％ RH |
|
Sampling method |
Free diffusion |
|
Background gas |
A mixture of nitrogen, inert gas, and oxygen |
|
service life |
＞4 years（Under normal usage conditions） |
|
Installation method |
Suspension installation |
Technical parameter：
Working principle: Zirconia
Detection range: 100/1000ppm/1.00/21.00% O2
Measurement accuracy: 0~1000ppm/1.00/21.00% O2 ≤ ± 1% FS
Resolution: 0.01% O2
Repeatability: ± 1% FS
Control output: non isolated 4-20mA DC
1 channel programmable relay alarm output
Communication method: RS485, analog output 4-20mA
Working power supply: DC24V/2A
Environmental temperature and humidity: -5 ℃~+50 ℃, ＜ 80% RH
Sampling method: free diffusion
Background gas: a mixture of nitrogen, inert gas, and oxygen
Service life:>4 years (under normal usage conditions)
Installation method: suspension installation
